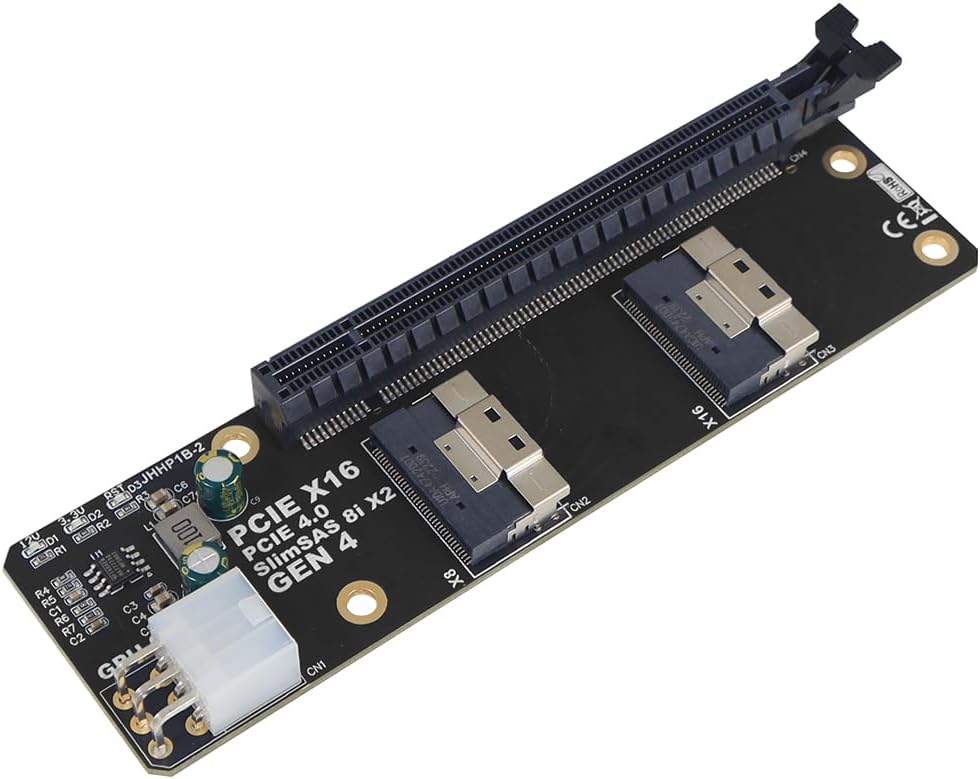

JMT 2Port SlimSAS 8i x2 to PCIe4.0/3.0 x16 Slot Adapter Card SFF8654 Riser Card for Network Graphics Video GPU (PCIe4.0 JHHP1B)

JMT 2Port SlimSAS 8i x2 to PCIe4.0/3.0 x16 Slot Adapter Card SFF8654 Riser Card for Network Card Graphics Video Card GPU JHHP1A: PCIe 3.0 x16 To 4 Ports Expansion Card PCI-E Gen3 X16 To SlimSAS 8i X2 SFF8654 Graphics Card Adapter for NVMe SSD Adapter Card Product description. 1, PCIE X16 full bandwidth 3.0 , GEN3 protocol 2, Gold finger sinking process, increase gold thickness to 5U. 3, with Slim sas 8i connector. 4, with 1 in 4 clock split IC. 5, with power on LED indicator. 6, Low profile PCB design to minimize size. 7, Support transferring 2 ports 4 ports to 4xnvme SSD. 8, Support transferring 1 full band graphics card or 2pcsX8 bandwidth graphics card. JHHP1B: 2Port SlimSAS 8i x2 to PCIe4.0 x16 Slot Adapter Card SFF8654 Riser Card GEN4 for Network Card Graphics Video Card GPU 6Pin Power Feature: 1. PCIE X16 full bandwidth 4.0, GEN4 protocol, compatible with gen3\gen4. 2. Support multiple riser card arrays. 3. using high-density low-impedance 4-layer circuit board. 4. using Slim sas8i connector. 5. using PCIE GEN4 connector. 6. with power-on LED indicator. Adopt step-down IC and high-current inductor. 7. Dwarf the PCB design and minimize the size. 8. Support 2-port SFF8654 to convert into a full-bandwidth X16 PCIE. 9. Using the graphics card PCIE 6P power supply port. 10. Conditions of use: The motherboard BIOS supports pcie splitting. 11. PCIE GEN4 X16 to SIimSAS 8i x2. 12. MODES: (x16) (x8x8) (x4x4x8) (x4x4x4x4). 13. Ultra-small size does not take up server space. 14. Support 4 ports, connect 4xnvme solid state hard disk or 4xU2 hard disk. 15. Support to transfer 1 full bandwidth graphics card or two X8 bandwidth graphics cards.

• JHHP1A PCIe3.0 Speed: PCIE X16 full bandwidth 3.0 , GEN3 protocol. Support transferring 2 ports 4 ports to 4xnvme SSD.
• JHHP1B PCIe4.0 Speed: PCIE X16 full bandwidth 4.0, GEN4 protocol, compatible with gen3gen4. Support 4 ports, connect 4xnvme solid state hard disk or 4xU2 hard disk.
• JHHP1A Come with Slim sas 8i connector, 1 in 4 clock split IC, power on LED indicator.
• JHHP1B Using high-density low-impedance 4-layer circuit board, Slim sas8i connector, PCIE GEN4 connector, power-on LED indicator. Adopt step-down IC and high-current inductor.
• Warm Tips: Need your motherboard BIOS supports PCIE splitting working mode. A PCIe switcher card is required to keep x16. It can be used with a dual MCIO adapter to connect to x16 slot. And Support 2-port SFF8654 to convert into a full-bandwidth X16 PCIE.
